USB Slip Ring

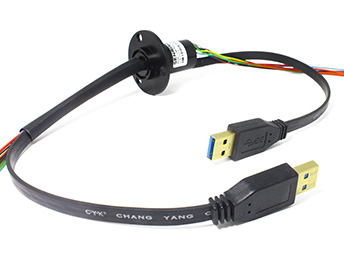

UM0155 Series USB3.0 Signal Slip Ring

1~2 ChannelS USB3.0 wire +2~12 circuits signal;

SENRING UM0155 series USB3.0 signal slip ring,solid,OD15.5mm,specially used to transmit high speed data and can be combined to transmit various signal channels,have the advantages of stable signal transmission,no packet loss, no string code, small return

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
1~8 USB2.0/USB3.0 signal channels optional;
Can combine electrocal / power / signal channels;
Male/female plugs can be inserted and removed directly;
With US military plating technology,precious metal + ultra hard gold plating treatment meke sure low BER error rate and high signal-to-noise ratio;
Part no. description
um0155 series UM0155 Series USB3.0 Signal Slip Ring slip ring description
Drawing
um0155 series UM0155 Series USB3.0 Signal Slip Ring slip ring Drawing
Standard model list
Model power/signal circuits no. USB channels no.
signal (2A) power (5A) power (10A) USB2.0 USB3.0
UM0155-01-02-18S 18 0 0 1 0
UM0155-01-02-12S 12 0 0 2 0
UM0155-03-02-06S 6 0 0 3 0
UM0155-04-02 0 0 0 4 0
UM0155-01-02-0305-03S 3 3 0 1 0
UM0155-01-02-12S 3 0 2 1 0
UM0155-01-03-12S 12 0 0 1 0
UM0155-02-03 0 0 0 0 2
UM0155-01-03-0205-06S 6 2 0 1 0

*Remark: Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use.Pls contact the SenRing salesman if you want to customize USB and power/signal circuit no,or mix other signal.

Technical Specification of um0155 series slip ring
USB cable 1~2 channels USB3.0
BER(bit-error rate) 10E-11
Mechanical Data
spec data
working life SenRing Slip Rings Grade Table
Rotating speed 150RPM
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material gold/gold
housing material aluminum alloy
torque 0.05N.m;+0.01N.m/6 circuits
material RoHS certificate
connector USB 3.0 male ( female optional)
insertion loss ≤2db
Electrical Data
spec data
power signal
voltage range 0∼240VAC/VDC 0∼240VAC/VDC
insulation resistance ≥300MΩ/300VDC ≥300MΩ/300VDC
lead wire spec. AWG30# Silver-plated teflon AWG30# Silver-plated teflon
lead wire length standard 150mm
(can be customized)
Dielectric Strength 300VAC@50Hz,60s
Electrical noise < 0.01Ω
CE certificate Yes
