USB Slip Ring

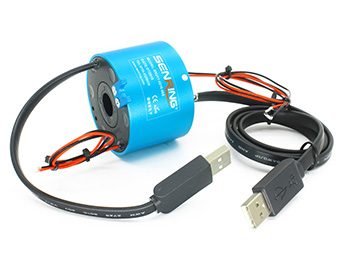

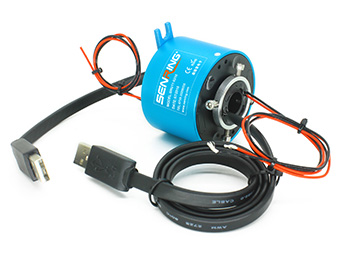

UH2586-01 Series USB2.0 Signal Slip Ring

1 channel USB2.0 wire+1~48 circuits power/signal;

SENRING UH2586-01 series Signgle channel USB slip ring,USB cable with 360° rotating,can be combined to transmit 2~38 circuits power/signal as well as fiber optic、gigabit ethernet. UH2586-01 series 1 channel USB slip ring has the advantages of stable signa

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
1 channel USB2.0 cable,can stable transmit 1 channel USB2.0 signal.
Standard USB male or female connector, can be customized;
Can be combined to transmit 2~38 circuits power/signal;
Hole size 25.4mm,OD 86mm;
Can be combined to transmit power and various signals of IEEE1394、Fiber Optic、Gigabit Ethernet,etc.
Can be combined to work with power and hydraulic/pneumaic rotary unions;
Part no. description

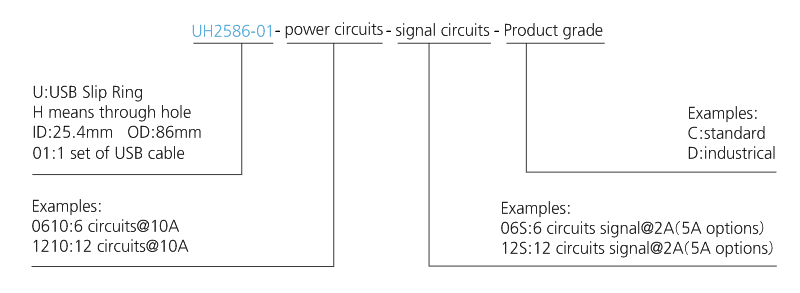

uh2586-01 series UH2586-01 Series USB2.0 Signal Slip Ring slip ring description
Drawing

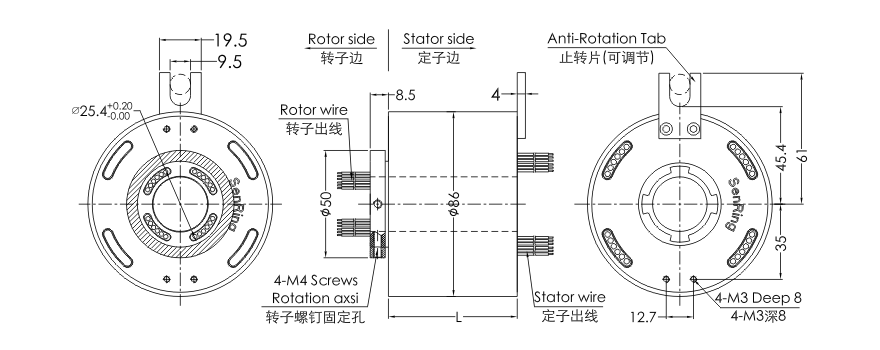

uh2586-01 series UH2586-01 Series USB2.0 Signal Slip Ring slip ring Drawing
Standard model list
Model power/signal circuits no. USB2.0 channels no. LengthL(mm)
0~2A power (10A) power (20A)
UH2586-01-02S 2 0 0 1 48
UH2586-01-0210 0 2 0 1 48
UH2586-01-0420 0 0 4 1 72
UH2586-01-08S 8 0 0 1 72
UH2586-01-0810 0 8 0 1 72
UH2586-01-0210-06S 6 2 0 1 72
UH2586-01-0410-04S 4 4 0 1 72
UH2586-01-14S 14 0 0 1 96
UH2586-01-1410 0 14 0 1 96
UH2586-01-0410-10S 10 4 0 1 96
UH2586-01-0810-06S 6 8 0 1 96
UH2586-01-20S 20 0 0 1 120
UH2586-01-2010 0 20 0 1 120
UH2586-01-26S 26 0 0 1 144
UH2586-01-38S 38 0 0 1 192

*Remark: Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use.Pls contact the SenRing salesman if you want to customize USB and power/signal circuit no,or mix other signal.

Technical Specification of uh2586-01 series slip ring
USB cable 1 channels USB2.0
BER(bit-error rate) 10E-11
Mechanical Data
spec data
working life SenRing Slip Rings Grade Table
Rotating speed 150RPM
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
connector USB 2.0 male ( female optional)
insertion loss ≤2db
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
CE certificate Yes
material RoHS certificate
uh2586-01 Grade Table
Grade code Max rotating speed working life contact material
C:standard 400RPM 20 millions precious metal
D:industrical 800RPM 60 millions
gold-gold
