USB Slip Ring

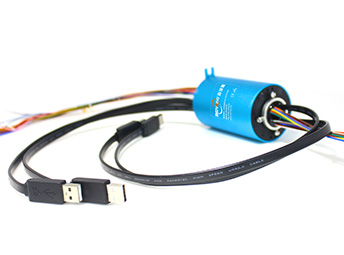

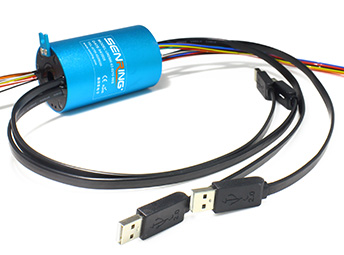

UH3899-02 Series USB2.0 Signal Slip Ring

2 Channels USB2.0 wire +1~56 circuits power/signal;

SENRING UH3899-02 series 3 channels USB rotary joint,can transmit 3 channels USB2.0 signal when 360° rotating,can be combined to stable transmit 1~34 circuits power/signal as well as IEEE1394 and various of USB signals. UH3899-02 series 2 channels USB sli

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Standard USB male or female connector, can be customized;
Can stable transmit 3 channels USB2.0 signal;
Can be combined to transmit 1~34 circuits power/signal;
Hole size 38.1mm,OD 99mm;
Can be combined to transmit power and various signals of IEEE1394、Ethernet、USB2.0,etc.
Can be combined to work with power and hydraulic/pneumaic rotary unions;
Part no. description
uh3899-02 series UH3899-02 Series USB2.0 Signal Slip Ring slip ring description
Drawing
uh3899-02 series UH3899-02 Series USB2.0 Signal Slip Ring slip ring Drawing
Standard model list
Model power/signal circuits no. USB2.0 channels no. LengthL(mm)
0~2A power (10A) power(20A)
UH3899-02-04S 4 2 0 2 72
UH3899-02-0410 0 4 0 2 72
UH3899-02-0420 0 0 0 2 72
UH3899-02-1010 0 10 0 2 96
UH3899-02-10S 10 0 0 2 96
UH3899-02-0210-08S 8 2 0 2 96
UH3899-02-0610-04S 4 6 0 2 96
UH3899-02-1610 0 16 0 2 120
UH3899-02-16S 16 0 0 2 120
UH3899-02-22S 22 0 0 2 144
UH3899-02-34S 34 0 0 2 192

*Remark: Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use.Pls contact the SenRing salesman if you want to customize USB and power/signal circuit no,or mix other signal.

Technical Specification of uh3899-02 series slip ring
USB cable 2 channels USB2.0
BER(bit-error rate) 10E-11
Mechanical Data
spec data
working life SenRing Slip Rings Grade Table
Rotating speed 150RPM
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m+(0.03N.m/6 circuits)
connector USB 2.0 male ( female optional)
insertion loss ≤2db
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
CE certificate Yes
material RoHS certificate

uh3899-02 Grade Table
Grade code Max rotating speed working life contact material
C:standard 400RPM 20 millions precious metal
D:industrical 800RPM 60 millions
gold-gold
