USB Slip Ring

UH1256-01 Series USB2.0 Signal Slip Ring

Single channel USB2.0 wire+1~24 circuits power/signal;

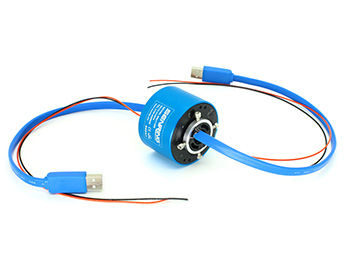

SENRING UH1256-01 series Signgle channel USB slip ring,hole size 12.7mm,OD56MM,can transmit 1 channel USB2.0 signal when 360° rotating, can be combined to transmit 1~20 circuits power/signal as well as IEEE1394 and various of USB signal. SNU11 series 1 c

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Standard USB male or female connector, can be customized;
Stably transmit 1 channel USB2.0 signal;
Can be combined to transmit 1~20 circuits power/signal;
Hole size 12.7mm,OD 56mm;
Can be combined to transmit power and various signals of IEEE1394、Ethernet、USB2.0,etc.
Can be combined to work with power and hydraulic/pneumaic rotary unions;
Part no. description
uh1256-01 series UH1256-01 Series USB2.0 Signal Slip Ring slip ring description
Drawing
uh1256-01 series UH1256-01 Series USB2.0 Signal Slip Ring slip ring Drawing
Standard model list
Model power/signal circuits no. USB2.0 channels no. LengthL(mm)
0~2A power (10A) power (20A)
UH1256-01-02S 2 0 0 1 38
UH1256-01-0210 0 2 0 1 38
UH1256-01-08S 8 0 0 1 55
UH1256-01-0810 0 8 0 1 55
UH1256-01-0210-06S 6 2 0 1 55
UH1256-01-0410-04S 4 4 0 1 55
UH1256-01-14S 14 0 0 1 71.5
UH1256-01-1410 0 14 0 1 71.5
UH1256-01-0410-10S 10 4 0 1 71.5
UH1256-01-0810-06S 6 8 0 1 71.5
UH1256-01-20S 20 0 0 1 88.5

*Remark: Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use.Pls contact the SenRing salesman if you want to customize USB and power/signal circuit no,or mix other signal.

Technical Specification of uh1256-01 series slip ring
USB cable 1 channels USB2.0
BER(bit-error rate) 10E-11
Mechanical Data
spec data
working life SenRing Slip Rings Grade Table
Rotating speed 150RPM
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
connector USB 2.0 male ( female optional)
insertion loss ≤2db
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
CE certificate Yes
material RoHS certificate
uh1256-01 Grade Table
Grade code Max rotating speed working life contact material
C:standard 400RPM 20 millions precious metal
D:industrical 800RPM 60 millions
gold-gold
