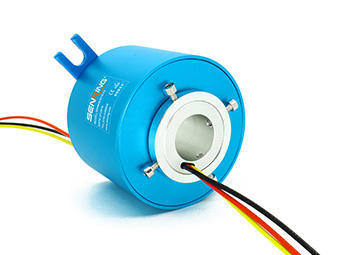

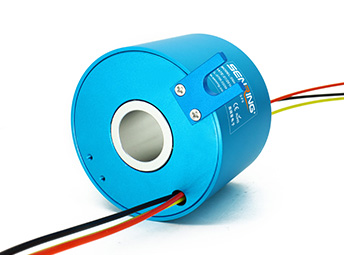

212004250 Serieshigh Current Slip Ring
4 channels,maximum current 250A per channel;
SENRING 212004250 series High Current slip ring, hole size 25mm,OD 119mm,sipport 4 circuits (250A each) high current.If you need to combine other circuit/signal channel no.,customization available based on the standard model.
- Features
- High current,maximum current can reach 3000A per channel;
- Aluminum or stainless steel housing;
- Has the advantages of small contact resistance, low heat and long - term stable operation;
- Integrated structure design,easy installation.
Part no. description
Drawing
Standard model list
| Model | Circuits | Max current | voltage | Max speed | working temp. |
| 212004250 | 4 circuits | 250A | 690V | 250RPM | -40℃~+80℃ |
Technical Specification of 212004250 series slip ring
