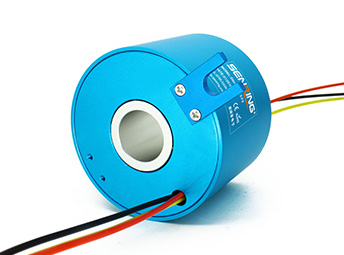

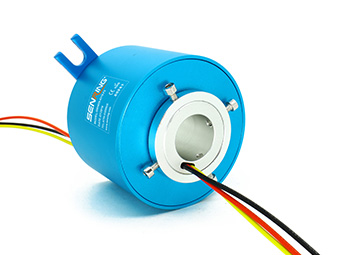

20860450 Series High Current Slip Ring

4 channels,max current per channel:50A,hole size:25.4mm,

SENRING 20860450 series 4 circuits 50A High Current collecting ring brush collecting ring,Through Hole High Current slip ring,hole size:25.4mm,OD:86mm,support 4 circuits (50A each )high current.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE

Features: Through hole structure design,hole size 25.4mm(Customization available);; Spportting 2 circuits(50A each)current;; Can be customize quickly on special circuit no. based on standard model;; Stainless steel housing make sure better protection;; Advantage:small contact resistance, low heat, long-term stable operation;; Integrated structure design, easy installation.

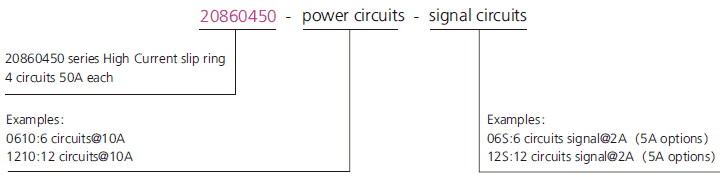

Part no. description

20860450 series 20860450 Series High Current Slip Ring slip ring description

Drawing

Standard model list

Model	Circuits	Max current	voltage	Max speed	working temp.
20860450	4 circuits	50A	690V	250RPM	-40℃~+80℃

Technical Specification of 20860450 series slip ring
