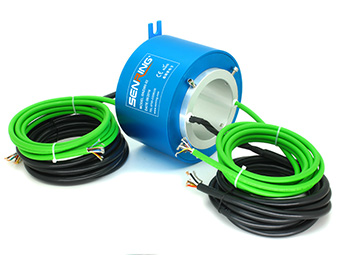

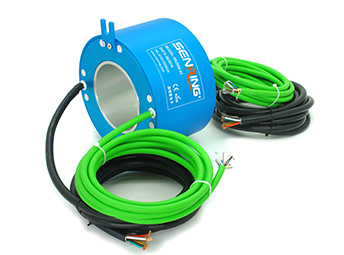

ZH70158 Series Servo Motor Encode Slip Ring
Hole size 70mm,OD 158mm,Servo motor No. 1~6PCS
SENRING ZH70158 series servo motor encode slip rings,specially desinged for servo motor/encoder of SIMEMS, YASKAWA,Panasonic,Mitsubishi, suitable for all kinds of foreign & domesitc servo mortor / stepper motor.Special inner wiring and shielding design to
- Features
- Hole size 70mm,OD 158mm;
- serve for 1~6pcs servo motors.
- Application for all kinds of foreign & domesitc servo mortor / stepper motor,such as SIMEMS, YASKAWA,Panasonic,Mitsubishi,and so on.
- Special inner wiring and shielding design to avoid encoder errors
- Can combine with other switch signal/power channels , CanBus and Profibus.....
- Special inner wiring and shielding design to avoid encoder errors,loss rate:<0.02%
Part no. description
Drawing
Standard model list
| Model list | Servo motor No. | Power circuits(10A) | Signal circuits(5A) | Length L(mm) |
| ZH70158-01 | 1 | 0 | 0 | 82 |
| ZH70158-01-06S | 1 | 0 | 6 | 106 |
| ZH70158-01-12S | 1 | 0 | 12 | 130 |
| ZH70158-01-24S | 1 | 0 | 24 | 178 |
| ZH70158-01-1210-12S | 1 | 12 | 12 | 178 |
| ZH70158-01-0610-30S | 1 | 6 | 30 | 274 |
| ZH70158-01-36S | 1 | 0 | 36 | 274 |
| ZH70158-01-1210-36S | 1 | 12 | 36 | 122 |
| ZH70158-01-48S | 1 | 0 | 48 | 322 |
| ZH70158-01-2410-48S | 1 | 24 | 48 | 418 |
| ZH70158-01-72S | 1 | 0 | 72 | 418 |
| ZH70158-01-96S | 1 | 0 | 96 | 514 |
| ZH70158-01-120S | 1 | 0 | 120 | 610 |
| ZH70158-02 | 2 | 0 | 0 | 130 |
| ZH70158-02-06S | 2 | 0 | 6 | 154 |
| ZH70158-02-12S | 2 | 0 | 12 | 178 |
| ZH70158-02-24S | 2 | 0 | 24 | 226 |
| ZH70158-02-1210-12S | 2 | 12 | 12 | 226 |
| ZH70158-02-0610-30S | 2 | 6 | 30 | 322 |
| ZH70158-02-36S | 2 | 0 | 36 | 322 |
| ZH70158-021210-36S | 2 | 12 | 36 | 370 |
| ZH70158-02-48S | 2 | 0 | 48 | 370 |
| ZH70158-02-2410-48S | 2 | 24 | 48 | 466 |
| ZH70158-02-72S | 2 | 0 | 72 | 466 |
| ZH70158-02-96S | 2 | 0 | 96 | 562 |
| ZH70158-02-120S | 2 | 0 | 120 | 658 |
| ZH70158-04 | 4 | 0 | 0 | 226 |
| ZH70158-04-06S | 4 | 0 | 6 | 250 |
| ZH70158-04-12S | 4 | 0 | 12 | 274 |
| ZH70158-04-24S | 4 | 0 | 24 | 122 |
| ZH70158-04-1210-12S | 4 | 12 | 12 | 322 |
| ZH70158-04-0610-30S | 4 | 6 | 30 | 418 |
| ZH70158-04-36S | 4 | 0 | 36 | 418 |
| ZH70158-04-1210-36S | 4 | 12 | 36 | 466 |
| ZH70158-04-48S | 4 | 0 | 48 | 466 |
| ZH70158-04-2410-48S | 4 | 24 | 48 | 562 |
| ZH70158-04-72S | 4 | 0 | 72 | 562 |
| ZH70158-04-96S | 4 | 0 | 96 | 658 |
| ZH70158-04-120S | 4 | 0 | 120 | 754 |
| ZH70158-06 | 6 | 0 | 0 | 322 |
| ZH70158-06-06S | 6 | 0 | 6 | 346 |
| ZH70158-06-12S | 6 | 0 | 12 | 370 |
| ZH70158-06-24S | 6 | 0 | 24 | 418 |
| ZH70158-06-1210-12S | 6 | 12 | 12 | 418 |
| ZH70158-06-0610-30S | 6 | 6 | 30 | 514 |
| ZH70158-06-36S | 6 | 0 | 36 | 514 |
| ZH70158-06-1210-36S | 6 | 12 | 36 | 562 |
| ZH70158-06-48S | 6 | 0 | 48 | 562 |
| ZH70158-06-2410-48S | 6 | 24 | 48 | 658 |
| ZH70158-06-72S | 6 | 0 | 72 | 658 |
| ZH70158-06-96S | 6 | 0 | 96 | 754 |
| ZH70158-06-120S | 6 | 0 | 120 | 850 |
*Remark: 1pcs servo motor(two cables,1*4 cores@10A cable for power+1*6 cores sheilded cable for encode signal).
Technical Specification of zh70158 series slip ring
| Mechanical | |
| spec. | data |
| Working life | pls refer to product grade table |
| Rotating speed | pls refer to product grade table |
| Working temp. | -30℃~80℃ |
| Work humidity | 0~85% RH |
| Contact material | refer to slip ring grade table |
| Housing material | aluminum alloy |
| Torque | 0.1N.m+0.03N.m/6circuits |
| Mechanical vibration | MIL-STD-810E |
| Material | RoHS certification |
| Electrical | ||
| spec. | data | |
| Power | Signal | |
| Voltage range | 0~440VAC/VDC | 0~440VAC/VDC |
| Insolution resistance | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
| Lead wire spec. | power cable or AWG#17 teflon wire | 6 cores shielded cable or AWG#22 teflon wire |
| Lead wire length | standard 300mm (can be customized) |
|
| Dielectric Strength | 500VAC@50Hz,60s | |
| Electrical noise | < 0.01Ω | |
| Loss rate | <0.02% | |
| CE certification | YES | |
zh70158 Grade Table
| grade code | Max. Operating Speed | Working life | Contact material |
| C ：Standard | 400RPM | 20 millions | precious metal |
| D：Industrical | 800RPM | 60 millions | gold-gold |
| H：High Quality | 1200RPM | 150 millions | gold alloy |
