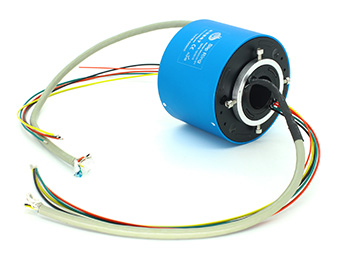

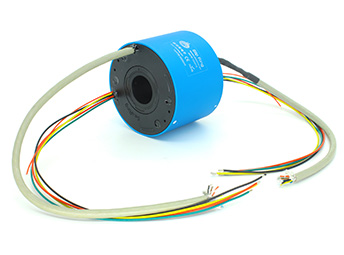

ZH30119 Servo Motor/Encode Slip Ring
Hole size 30mm,OD 119mm,Servo motor No. 1~8PCS
SENRING ZH30119 series servo motor encode slip rings,specially desinged for servo motor/encoder of SIMEMS, YASKAWA,Panasonic,Mitsubishi, suitable for all kinds of foreign & domesitc servo mortor / stepper motor.Special inner wiring and shielding design to
- Features
- Hole size 30mm,OD 119mm;
- serve for 1~8pcs servo motors.
- Application for all kinds of foreign & domesitc servo mortor / stepper motor,such as SIMEMS, YASKAWA,Panasonic,Mitsubishi,and so on.
- Special inner wiring and shielding design to avoid encoder errors
- Can combine with other switch signal/power channels , CanBus and Profibus.....
- Special inner wiring and shielding design to avoid encoder errors,loss rate:<0.02%
Part no. description
Drawing
Standard model list
| Model list | Servo motor No. | Power circuits(10A) | Signal circuits(5A) | Length L(mm) |
| ZH30119-01 | 1 | 0 | 0 | 76 |
| ZH30119-01-06S | 1 | 0 | 6 | 100 |
| ZH30119-01-12S | 1 | 0 | 12 | 124 |
| ZH30119-01-24S | 1 | 0 | 24 | 172 |
| ZH30119-01-1210-12S | 1 | 12 | 12 | 172 |
| ZH30119-01-0610-30S | 1 | 6 | 30 | 268 |
| ZH30119-01-36S | 1 | 0 | 36 | 268 |
| ZH30119-01-1210-36S | 1 | 12 | 36 | 316 |
| ZH30119-01-48S | 1 | 0 | 48 | 316 |
| ZH30119-01-2410-48S | 1 | 24 | 48 | 412 |
| ZH30119-01-72S | 1 | 0 | 72 | 412 |
| ZH30119-01-96S | 1 | 0 | 76 | 508 |
| ZH30119-01-120S | 1 | 0 | 120 | 604 |
| ZH30119-02 | 2 | 0 | 0 | 124 |
| ZH30119-02-06S | 2 | 0 | 6 | 148 |
| ZH30119-02-12S | 2 | 0 | 12 | 172 |
| ZH30119-02-24S | 2 | 0 | 24 | 220 |
| ZH30119-02-1210-12S | 2 | 12 | 12 | 220 |
| ZH30119-02-0610-30S | 2 | 6 | 30 | 316 |
| ZH30119-02-36S | 2 | 0 | 36 | 316 |
| ZH30119-02-1210-36S | 2 | 12 | 36 | 164 |
| ZH30119-02-48S | 2 | 0 | 48 | 364 |
| ZH30119-02-2410-48S | 2 | 24 | 48 | 460 |
| ZH30119-02-72S | 2 | 0 | 72 | 460 |
| ZH30119-02-96S | 2 | 0 | 76 | 556 |
| ZH30119-02-120S | 2 | 0 | 120 | 652 |
| ZH30119-04 | 4 | 0 | 0 | 220 |
| ZH30119-04-06S | 4 | 0 | 6 | 244 |
| ZH30119-04-12S | 4 | 0 | 12 | 268 |
| ZH30119-04-24S | 4 | 0 | 24 | 316 |
| ZH30119-04-1210-12S | 4 | 12 | 12 | 316 |
| ZH30119-04-0610-30S | 4 | 6 | 30 | 412 |
| ZH30119-04-36S | 4 | 0 | 36 | 412 |
| ZH30119-04-1210-36S | 4 | 12 | 36 | 460 |
| ZH30119-04-48S | 4 | 0 | 48 | 460 |
| ZH30119-04-2410-48S | 4 | 24 | 48 | 556 |
| ZH30119-04-72S | 4 | 0 | 72 | 556 |
| ZH30119-04-96S | 4 | 0 | 76 | 652 |
| ZH30119-04-120S | 4 | 0 | 120 | 748 |
| ZH30119-08 | 8 | 0 | 0 | 412 |
| ZH30119-08-06S | 8 | 0 | 6 | 436 |
| ZH30119-08-12S | 8 | 0 | 12 | 460 |
| ZH30119-08-24S | 8 | 0 | 24 | 508 |
| ZH30119-08-1210-12S | 8 | 12 | 12 | 508 |
| ZH30119-08-0610-30S | 8 | 6 | 30 | 604 |
| ZH30119-08-36S | 8 | 0 | 36 | 604 |
| ZH30119-08-1210-36S | 8 | 12 | 36 | 652 |
| ZH30119-08-48S | 8 | 0 | 48 | 652 |
| ZH30119-08-2410-48S | 8 | 24 | 48 | 748 |
| ZH30119-08-72S | 8 | 0 | 72 | 748 |
| ZH30119-08-96S | 8 | 0 | 76 | 844 |
| ZH30119-08-120S | 8 | 0 | 120 | 940 |
*Remark: 1pcs servo motor(two cables,1*4 cores@10A cable for power+1*6 cores sheilded cable for encode signal).
Technical Specification of zh30119 series slip ring
| Mechanical | |
| spec. | data |
| Working life | pls refer to product grade table |
| Rotating speed | pls refer to product grade table |
| Working temp. | -30℃~80℃ |
| Work humidity | 0~85% RH |
| Contact material | refer to slip ring grade table |
| Housing material | aluminum alloy |
| Torque | 0.1N.m+0.03N.m/6circuits |
| Mechanical vibration | MIL-STD-810E |
| Material | RoHS certification |
| Electrical | ||
| spec. | data | |
| Power | Signal | |
| Voltage range | 0~440VAC/VDC | 0~440VAC/VDC |
| Insolution resistance | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
| Lead wire spec. | power cable or AWG#17 teflon wire | 6 cores shielded cable or AWG#22 teflon wire |
| Lead wire length | standard 300mm (can be customized) |
|
| Dielectric Strength | 500VAC@50Hz,60s | |
| Electrical noise | < 0.01Ω | |
| Loss rate | <0.02% | |
| CE certification | YES | |
zh30119 Grade Table
| grade code | Max. Operating Speed | Working life | Contact material |
| C： Standard | 400RPM | 20 millions revolutions | precious metal |
| D：Industrical | 800RPM | 60 millions revolutions | gold-gold |
| H：High Quality | 1200RPM | 150 millions revolutions | gold alloy |
