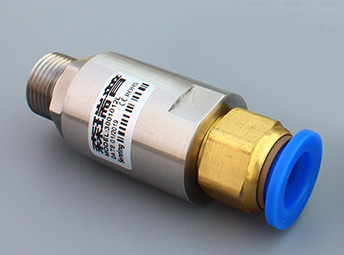

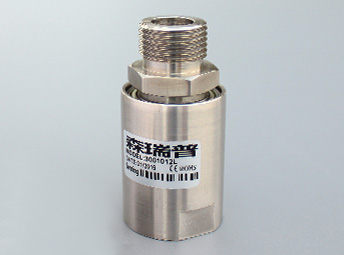

3001012L Series single passage pneumatic rotary union

1 In - 1 Out passage; Input G3/8″, Output G3/8″

SENRING 3001012L is singel passage rotary union that transfers Compressed air, steam, vacuum and kinds of gas media.

Features: 1 In - 1 Out passage; Input G3/8″, Output G3/8″; The media could be: Compressed air, hydrogen, nitrogen, chemical gas mixture, steam, cooling water, hot water,hot oil, petroleum, sulfuric acid, beverage, etc

Part no. description

Drawing

Standard model list

Model List	Input	Output	Length L(mm)
3001012L	G3/8″	G3/8″	52mm

Technical Specification of 3001012l series slip ring

spec.	data
Passages(Gas)	1 passage
Max. OperatingPressure	-90kPa Positive Pressure 1Mpa, Vacuum -90kPa
Pipe Size	G3/8″ Port
torque	0.2N.m
Working life	20millions for ref(depends on working conditions)
Max. Operating Speed	250RPM continously, 1000RPM intermittently
Working temp.	-30℃∼80℃
Work humidity	0∼85% RH
Contact Materia	Precious Metal
Housing Material	stainless steel
IP Grade	IP68
