FO Series Fiber Optic Slip Ring (Fiber-Electric Rotary Joint)

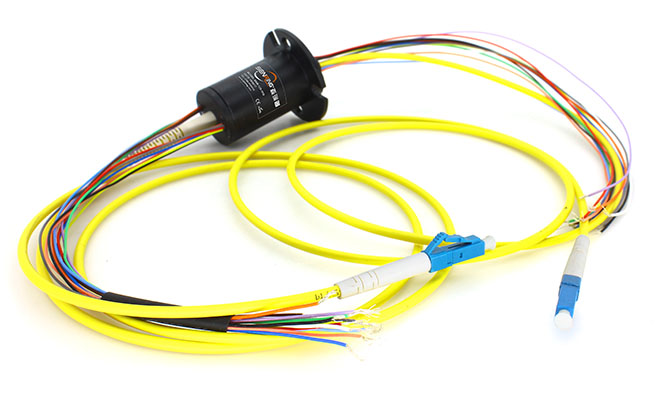

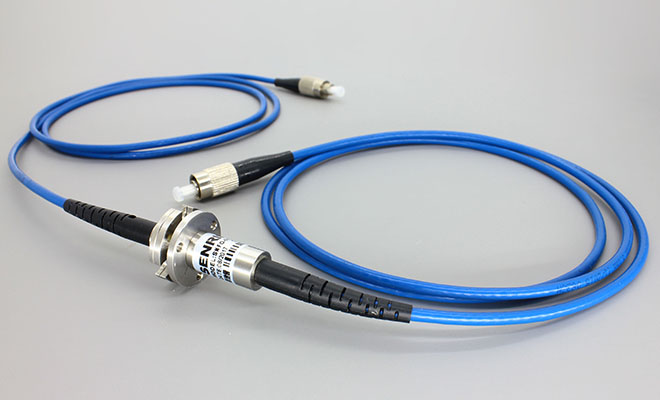

FO series Fiber Optic slip ring also called Fiber-Electric slip ring,Fiber Optic Rotary Joint. Adopt fiber to trasmit signal, used to any devices to transmit elctricity and Fiber signal when 360° rotating ,such as HD video transmission system, microwave communication, medical equipment, sensor signal measurement, radar and video monitoring system, etc. Specially suitable for some applications which requires to keep continous or intermittent rotating and transmit mass data from static side to rotation side， which can improve mechanical performance, simplify system operation and avoiding damages to fiber when rotating. Can be combined with the traditional electric slip ring to transmit power and high-speed data.

Product Manual Installation @Technical Inquiry

Features

● Can transmit single or multi channels fiber optic signal;

● Fiber connector : FC、SC、ST、SMA or LC (PC /APC),etc optional;

● Can be combined to transmit power, control signal, micropower signal of computer antomative control

● Can be combined with the traditional electric slip ring to transmit power and high-speed data;

● Non contact, no friction, long working life, >100 million revolutions (2-3 millions revolutions for signal channel model);

● Safe and reliable, no electromagnetic interference long-distance transmission.

Part No. Description

Fiber Channel no.

Power circuits no.

Signal circuits no.

Fiber type

Connector type

wavelength

Fiber/ Fiber-Electric
slip ring code

Example：
100：signal channel Fiber optic rotary joint
200：two channels Fiber optic rotary joint

Example：
0610:06 means 6 circuits,10 means 10A per circuit

Example：
06S:06 means 6 circuits,
S means signal

Fiber type code：
01:9/125um（Single mode）
02:50/125um（multi mode）
03:62.5/125um（multi mode）

Connector type
code ：
FC:FC connector
ST:ST connector
SC:SC connector
LC:LC connector
t connecter interface
is PC by defaul,
if need APC
FC/APC pls add APC,
as FC/APC

Wavelength：
01:1310/1550
(Single mode)
02:850/1310
(multi mode)

For example

"FO100-01-FC-01": FO100 means single channel Fiber Optic rotary joint,the first 01 means Fiber type 9/125um(single mode) , FC means FC connector, fiber interface PC, the second 01 means wavelength :1310/1550;

"FO208-06S-LC/APC-02": FO208 means 2 channels Fiber-Electric rotary joint, 06S means 6 circuits signal, 03 means Fiber type 62.5/125m(multi-mode), LC/APC means LC connector, APC interface , 02 means wavelength :850/1310;

*"Remark": If you have special requirements for fiber channel no., electric circuit no., Fiber connector type, wavelength or wire exiting, pls contact SenRing salesman.

model list

Model	PDF	Fiber channel	max circuits（power/signal）	OD(mm)
FO100		1 channel	0	10
FO100A		1 channel	0	6.8
FO100B		1 channel	0	12.7
FO102		1 channel	30	24.8
FO108		1 channel	48	54
FO109		1 channel	96	86
FO200		2 channel	0	67
FO200B		2 channel	0	67
FO200C		2 channel	0	35
FO208		2 channel	96	86
FO209		2 channel	24	56
FO400		4 channel	0	67
FO400B		4 channel	0	67
FO408		4 channel	96	86
FO409		4 channel	24	56
FO600		6 channel	0	67
FO608		6 channel	96	86
FO609		6 channel	96	56
FO800		8 channel	0	67
FO808		8 channel	96	86

*If no standard models suitable , contact us for custom solutions,E-mail: ：[email protected]

Color code of Lead Wire

ring no.	color	ring no.	color
1	black	13	WHT/BLK
2	brown	14	WHT/BRN
3	red	15	WHT/RED
4	orange	16	WHT/ORG
5	yellow	17	WHT/YEL
6	green	18	WHT/GRN
7	blue	19	WHT/BLU
8	purple	20	WHT/PUR
9	grey	21	WHT/GRY
10	white	22	BLK/RED
11	pink	23	BLK/BRN
12	lightblue	24	transparent
