A1H65PS Series Mercury Slip Ring(1circuits@650A Power Current)

1 circuit,650A per circuit

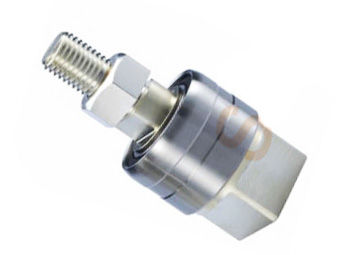

SENRING A1H25PS series mercury slip ring also called 1 circuits@650A mercury rotating connector (rotary joint),torque 650x10-3Nm,can be transmit 1circuits@650A power current.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE

Drawing

Installation

Standard model list

Model	Poles	Current(A)	Dielectric strength AC/DC(V)	Max frequency MHZ	Contact Resistance	Max rotating speed	Working temp.(Max/Min ℃)	Torque (x10-3Nm)	Insolution resistance
A1H65PS	1 pole	650	--	200	<1mΩ	200	-29℃~60℃	1000	--

Application

SENRING A1H65PS Series Mercury Slip Ring(1circuits@650A Power Current) slip ring is produced with special sealing materials,insolution and conductive technology,made of aluminum alloy or stainless steel,applied for any rotating objects of signal transmitting such as:tiny voltage, EMF, thermocouple, strain gauge,audio and video signals, high frequency, computer signals and electric power connections.

Caution

1、Working temperature does not exceed 60℃,indoor temperature and self-heating (rotating and electric connection)
2、Vertical installation and storage should keep the UP towards direction
3、Installing the slip ring into the shafe should keep no eccentricity
4、Do not solder on the slip ring and copper terminals
5、Special connection terminals can't use reduplicate
6、Vibration will shorten the working life
7、The slip ring can be mounted by the body or plastic collar but it couldn't carry any mechanical loads.Another end should be connected floating hold by wires
Pls follow above instructions, otherwise it will cause the damage or shorten the working life
