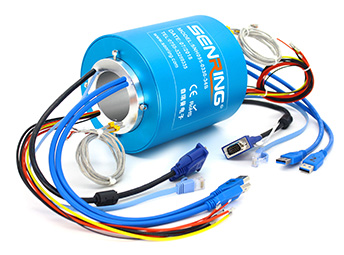

BH50130 Series Industrial Bus Slip Ring

Features

hole size 50mm, OD 130mm,max. 96 circuits;

accurately transmit high speed data

stably transmit all kinds of signals, such as, RS-232, RS-485, RS-422, VGA, etc.;

accurately transmit all kinds of industrical bus signals , such as: Profibus, LonWorks, CanBus, DeviceNet,ControlNet;

transmit mixed signals, such as, USB,HDMI, 1000M ethernet, fiber optic, VGA, DVI, coaxial RF (high frequency), etc;

F - 100M Ethernet (10, 100 BaseT Ethernet) - RJ45 (4circuits)

E - 1000M Ethernet (1000 BaseT Ethernet) - RJ45 (9circuits)

P - Profibus (Profibus - 4-Pin D-Sub) (4circuits)

C - Canbus (Canbus - 4-Pin D-Sub) (4circuits)

D - Device Net - 5 Pin Micro Change (5 circuits)

T - Control Net - 75 Ω BNC (4circuits)

V - VGA (9circuits)

U - USB 2.0 (5circuits)

R - RS485 (3circuits)

R1 - RS422(5circuits)

R2 - RS232(10circuits)

B - Servo motor encoder signal(8circuits)

E1 - Industrial Ethernet (9circuits)

circuits no.	2~96circuits(depends on model)
voltage rating	0~440 VDC/VAC
Housing Material	AL alloy
Working Life	> 80 millions for ref(depends on working conditions)
Electrical Noise	<10mΩ
dielectric strength	800VDC@50Hz
Dielectric Strength	1000MΩ@600VDC
Working Temp.	-40℃ ~ 80°C
mechanical vibration	MIL-STD-810E

Current	signal (2A),10A/circuit
max. rotating speed	250RPM continously, 1000RPM intermittently
torque	0.1N.m;+0.03N.m/6 wire
Contact Material	precious metal: gold alloy
contact resistance	<20mΩ(AWG16#,300mm)
Lead wire Spec.	UL Teflon@Awg22,Awg16
lead wire length	300mm
IP Grade	IP51
Work Humidity	10% ~ 85% RH
CE certificate	YES
material	RoHS compliant
