SENRING
High Frequency Rotary Joint

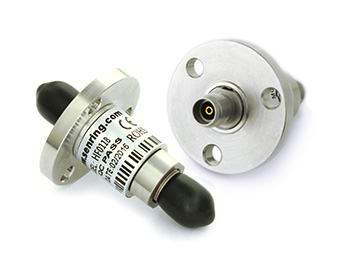

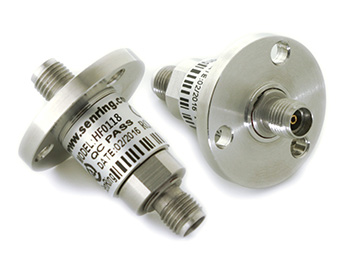

HF0118-12 Series Single Channel Rf Rotary Joint Slip Ring

signal channel,frequency DC~18GHz,OD 12.5mm

SENRING HF0118-12 series coaxial cable slip ring is a 1 channel 18GHz rf rotary joint slip ring,frequency DC~18GHz,SMA-K/SMA-K connector,work speed 250RPM。HF0118-12 is used transmitting of analog and digital signals.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
RF Channel: 1 channel;
Frequency: DC~18GHz;
Low insertion loss and voltage standing wave ratio;
Application for satellite Antenna,Ship-borne,vehicle,radar,Microwave antenna test bench....etc;;
Used in the 360° continuous rotation devices to transfer high frequency signals;
Integrated structure, easy installation;
Part no. description
hf0118-12 series HF0118-12 Series Single Channel Rf Rotary Joint Slip Ring slip ring description
Drawing
hf0118-12 series HF0118-12 Series Single Channel Rf Rotary Joint Slip Ring slip ring Drawing
Technical Specification of hf0118-12 series slip ring
Connector type SMA-K(50Ω)
Frequency DC to 18 Ghz
VSWR(max) 1.3@DC to 10 GHz
1.4@DC to 18 GHz
VSWR fluctuation(max) 0.05
Peak power(max) 3000W
Rotating speed(max) 250RPM
Starting torque(max) 0.5N.cm
Connector axial load(max) ±0.1N
Insulating material PTFE
Temperature -55 to +85℃ (work temperature)
-55 to +85℃ (storage temperature)
IP grade IP 40 acc. EN 60529
Style I type
Phase WOW ( Max degree)
Insertion loss 0.25 dB @ DC to 10 GHz
0.30 dB @10 to 18 GHz
Insertion loss fluctuation 0.05 dB
Average power(max) 500 W @1 GHz
200 W @6GHz
100 W @12 GHz
30 W @18GHz
working life > 10 millions for ref(depends on working conditions)
Rotating torque(max) 0.5 N.cm
Connector radial load(max) ±0.1N
Humidity 95% (work humidity)
85% (storage humidity)
