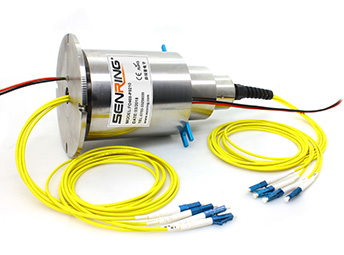

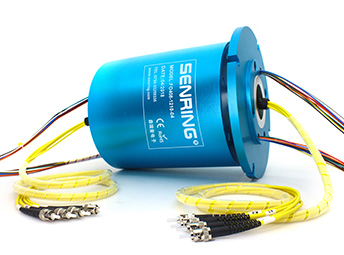

FO609 Series 6 Channels Fiber-Electric Slip Ring

1310nm/1550nm

6 channels Fiber(support single mode/multi-mode) can be combined to transmit 1~24 circuits signal.Suitable for some applications which requires to keep 360° unrestricted,continuous or intermittent rotating and transmit mass data/signal from static side to

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE

Features

Part no. description

fo609 series FO609 Series 6 Channels Fiber-Electric Slip Ring slip ring description

Drawing

Standard model list

FO609 series 6 channels Fiber-Electric slip ring model selection table;
Model	Fiber Channel no.	power circuits（10A）	signal/5A	Length L(mm)
FO609-02S	4	0	2	34
FO609-0210	4	2	0	34
FO609-03S	4	0	3	34
FO609-0310	4	3	0	34
FO609-06S	4	0	6	34
FO609-0210-04S	4	2	4	34
FO609-0410-02S	4	4	2	34
FO609-0610	4	6	0	34
FO609-12S	4	0	12	52
FO609-0210-10S	4	2	10	52
FO609-0310-09S	4	3	9	52
FO609-0610-06S	4	6	6	52
FO609-0810-04S	4	8	4	52
FO609-1010-02S	4	10	2	52
FO609-1210	4	12	0	52
FO609-18S	4	0	18	68.5
FO609-0210-16S	4	2	16	68.5
FO609-0610-12S	4	6	12	68.5
FO609-0810-10S	4	8	10	68.5
FO609-1010-08S	4	10	8	68.5
FO609-1210-06S	4	12	6	68.5
FO609-1610-02S	4	16	2	68.5
FO609-24S	4	0	24	85.5
FO609-0410-20S	4	4	20	85.5
FO609-0610-18S	4	6	18	85.5

Technical Specification of fo609 series slip ring

itemtype	Single mode（SM）	multi mode（MM）
Bandwidth(nm)	±50
Max insertion Loss，23℃(dB)	4	3.5
Insertion loss fluctuation(dB)	≤2	≤1
Return loss(dB)	≥50(PC)	≥40(PC)
max power(W)	0.5
Max speed(rpm)	400
Working life	>200 million
Work Temperature(℃)	-20~60
Storage temperature(℃)	-50~85

spec	data
	power	signal
voltage range	0~440VAC/VDC	0~440VAC/VDC
insulation resistance	≥1000mΩ/500VDC	≥1000mΩ/500VDC
lead wire spec.	AWG17# Silver-plated teflon	AWG22# Silver-plated teflon
lead wire length	standard 300mm（can be customized）
Dielectric Strength	500VAC@50Hz，60s
Electrical noise	<0.01Ω

Mechanical Data
spec	data
working life	8000 millions for ref(depends on working conditions)
Rotating speed	250RPM
Work Temperature	-20℃~60℃
work humidity	0~85% RH
contact material	precious metal
housing material	aluminum alloy
torque	0.1N.m+（0.03N.m/6 circuits）
IP grade	IP51
