M155 Series Mini Capsule Slip Ring

OD 15.5mm , 24 wires each 1.5A

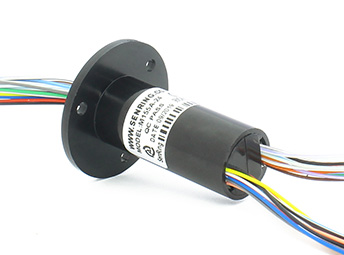

M155 series mini capsule slip ring,OD 15.5mm, length 39mm,it is compact, advanced military level, gold-gold contact ensures low contact resistance, stability and working life, M155 designed 90° degree V -groove ensures smooth rotating, low torque. More in

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE

Features: OD 15.5mm;; Low torque,less than 0.06N.m; Standard mode support 1~24 wires(each 1.5A);; Flange A type and C type optional;; Standard product, stocks available;

Part no. description

m155 series M155 Series Mini Capsule Slip Ring slip ring description

Drawing

Standard model list

model	Circuits NO.	Max current/circuit	Length L(mm)
M155A-24	24	1.5A	39
M155C-24	24	1.5A	39

Technical Specification of m155 series slip ring

Mechanicall parameters
Working Life	10millions for ref(depends on working conditions)
Rotating speed	250RPM
Working Temp.	-30°C~80°C
Work Humidity	0~85% RH
Contact Material	precious metal:gold-gold
Housing Material	engineered plastic
Torque	0.05N.m+0.01N.m/6 wire
IP Grade	IP51

Electrical parameters
Spec.	Power	Signal
Voltage Range	0~240VAC/VDC	0~240VAC/VDC
Insolution Resistance	≥200MΩ/300VDC	≥200MΩ/300VDC
Lead wire Spec.	AWG30# Silver-plated teflon	AWG30# Silver-plated teflon
lead wire length	standard length 150mm (can be customized)
Dielectric Strength	300VAC@50Hz,60s
Electrical Noise	< 0.01Ω
