H180298 Series（Hollow Shaft）Through Hole Slip Ring

Features

• Max rotating speed : 150RPM,600RPM,1200RPM(optional);
• Standard model supports 2~36 circuits power(0~10A) or 2~108 circuits signal(0~5A),current and channels can be customized;
• Contact materil used precious metal,ensure the stablity and working life;
• Support transmitting power with signals ;
• Integrated structure design, easy installation.

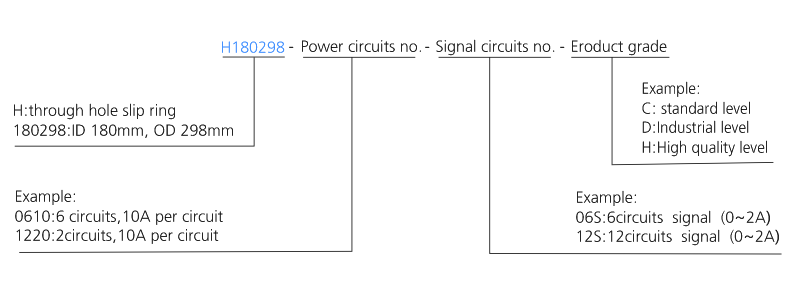

Part no. description

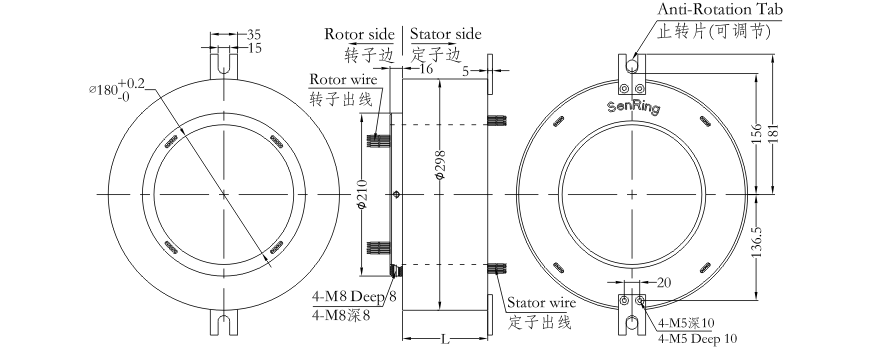

Drawing

Standard Model List

model	circuits		Length L（mm）	model	circuits		Length L（mm）
	10A	signal or 0-5A			10A	signal or 0-5A
H180298-02S	0	2	70	H180298-36S	0	36	240
H180298-0210	2	0	70	H180298--0610-30S	6	30	240
H180298-03S	0	3	75	H180298-1210-24S	12	24	240
H180298-0310	3	0	75	H180298-3610	36	0	240
H180298-06S	0	6	90	H180298-42S	0	42	270
H180298-0210-04S	2	4	90	H180298-0610-36S	6	36	270
H180298-0410-02S	4	2	90	H180298-1210-30S	12	30	270
H180298-0610	6	0	90	H180298-4210	42	0	270
H180298-12S	0	12	120	H180298-48S	0	48	300
H180298-0210-10S	2	10	120	H180298-0610-42S	6	42	300
H180298-0310-09S	3	9	120	H180298-1210-36S	12	36	300
H180298-0610-06S	6	6	120	H180298-1810-30S	18	30	300
H180298-0810-04S	8	4	120	H180298-P2410-24S	24	24	300
H180298-1010-02S	10	2	120	H180298-4810	48	0	300
H180298-1210	12	0	120	H180298-60S	0	60	360
H180298-18S	0	18	150	H180298-0610-54S	6	54	360
H180298-0210-16S	2	16	150	H180298-0910-51S	9	51	360
H180298-0410-14S	4	14	150	H180298-1210-48S	12	48	360
H180298-0610-12S	6	12	150	H180298-2410-36S	24	36	360
H180298-0810-10S	8	10	150	H180298-72S	0	72	420
H180298-1010-08S	10	8	150	H180298-1210-60S	12	60	420
H180298-1210-06S	12	6	150	H180298-2410-48S	24	48	420
H180298-1410-04S	14	4	150	H180298-3610-36S	36	36	420
H180298-1610-02S	16	2	150	H180298-84S	0	84	480
H180298-24S	0	24	180	H180298-1210-72S	12	72	480
H180298-0410-20S	4	20	180	H180298-2410-60S	24	60	480
H180298-0610-18S	6	18	180	H180298-3610-48S	36	48	480
H180298-1210-12S	12	12	180	H180298-96S	0	96	540
H180298-1810-06S	18	6	180	H180298-1210-84S	12	84	540
H180298-2410	24	0	180	H180298-2410-72S	24	72	540
H180298-30S	0	30	210	H180298-3610-60S	36	60	540
H180298-0610-24S	6	24	210	H180298-4210-54S	42	54	540
H180298-1210-18S	12	18	210	H180298-108S	0	108	600
H180298-1810-12S	18	12	210	H180298-1210-96S	12	96	600
H180298-2410-06S	24	6	210	H180298-2410-84S	24	84	600
H180298-3010	30	0	210	H180298-3610-72S	36	72	600

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification Of h180298 Series Slip Ring

Mechanicall parameters
Working Life	refer to slip ring grade table
Rotating speed	refer to slip ring grade table
Working Temp.	-30°C~80°C
Work Humidity	0~85% RH
Contact Material	refer to slip ring grade table
Housing Material	AL alloy
Torque	0.05N.m+0.02N.m/6 wire
IP Grade	IP51

Electrical parameters
Spec.	Power	Signal
Voltage Range	0~690VAC/VDC	0~440VAC/VDC
Insolution Resistance	≥1000MΩ/500VDC	≥1000MΩ/500VDC
Lead wire Spec.	AWG17# Silver-plated teflon	AWG22# Silver-plated teflon
lead wire length	standard length 300mm (can be customized)
Dielectric Strength	800VAC@50Hz,60s
Electrical Noise	< 0.01Ω

h180298 Grade Table

Grade code	Max rotating speed	Working Life	Contact Material
C(Standard)	250RPM	20 millions revolutions	precious metal
D(Industrical)	600RPM	80 millions revolutions	precious metal
H(High Quality)	1000RPM	150 millions revolutions	gold alloy
