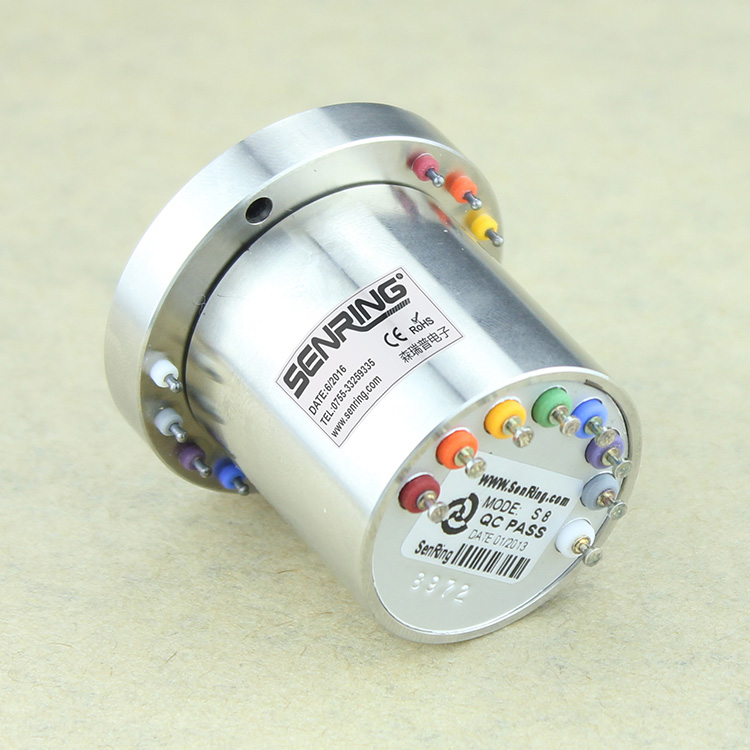

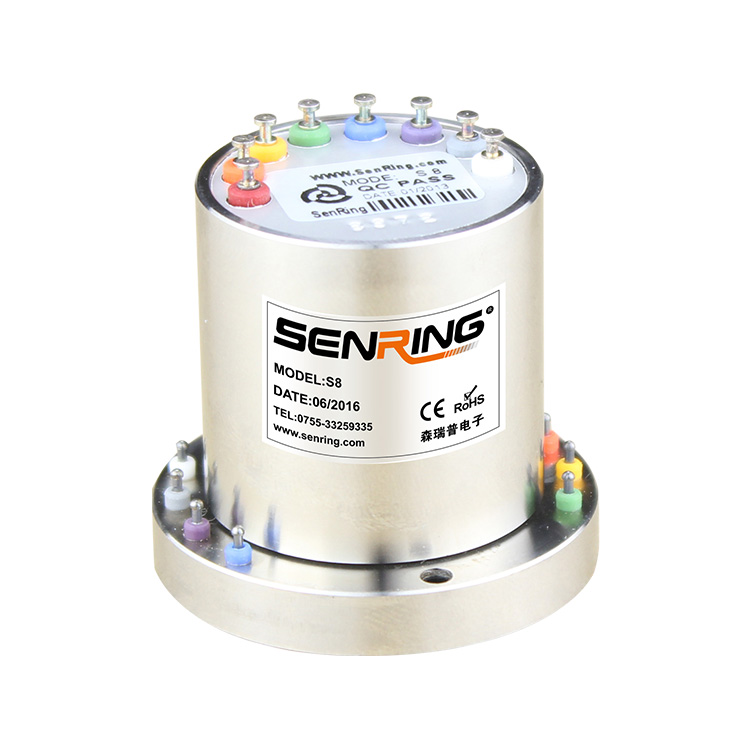

G000 Series Super High Speed Slip Ring(Max Speed 12000RPM)

SENRING G000 series High Speed slip ring,max speed 12000RPM, which is the highest rotating speed slip ring model when 360° rotating among high speed series slip rings. With integrated structure, light weight,high IP grade. Adopt the same materials for a

G000 series High Speed slip ring,the max rotation speed 12000RPM which is the highest rotating speed slip ring model when 360 rotating among high speed series slip rings.

Installation Resources 3D Model @Technical Inquiry Get a Quote

Features
Max speed 12000RPM; Stablely transmit 2~16 circuit (0.1~1A) signal or power; solid without hole, stator OD31.2mm,as drawing; Adopt high temperature alloys and composites materials,no need cooling; Integrated structure, easy installation,high concentricity; Typical application: aero-engine speed test, automobile drive shaft torque test

Part no. description

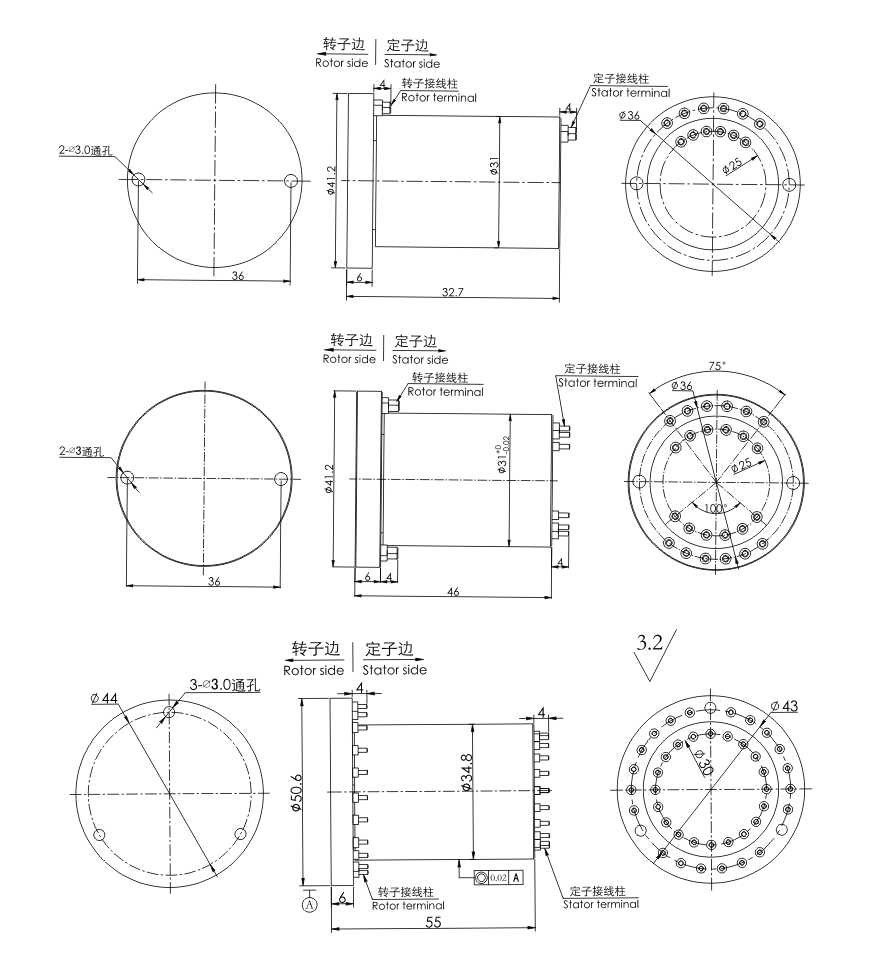

Drawing

Technical Specification Of g000 Series Slip Ring

Mechanical Data
spec	data
Rotating speed	12000RPM
working temp.	-30℃~80℃
work humidity	0~85%RH
contact material	SENRING Slip Rings Grade Table
housing material	aluminum alloy
torque	0.1N.m;+0.03N.m /6 circuits

Electrical Data
spec	data
voltage range	0~440VAC/VDC
insulation resistance	≥1000MΩ/500VDC
lead wire spec.	terminal
lead wire length	standard 300mm（can be customized）
Dielectric Strength	800VAC@50Hz，60s
Electrical noise	< 0.01Ω
certificate	RoHS、CE
IP grade	IP51
