FO400B Series 4 Channels Fiber Optic Slip Ring

1310nm/1550nm

4 channels Fiber(support single mode/multi-mode) .Suitable for some applications which requires to keep 360° unrestricted,continuous or intermittent rotating and transmit mass data/signal from static side to rotation side， which can improve mechanical per

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE

Features: Can transmit single or multi channels fiber optic signal;; Fiber connector : FC、SC、ST、SMA or LC (PC /APC),etc optional;; Can be combined to transmit power, control signal, micropower signal of computer antomative control;; Can be combined with the traditional electric slip ring to transmit power and high-speed data;; Non contact, no friction, long working life, >100 million revolutions (20-30 millions revolutions for signal channel model);; Safe and reliable, no electromagnetic interference long-distance transmission.

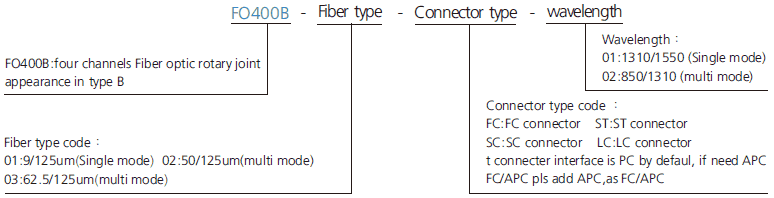

Part no. description

fo400b series FO400B Series 4 Channels Fiber Optic Slip Ring slip ring description

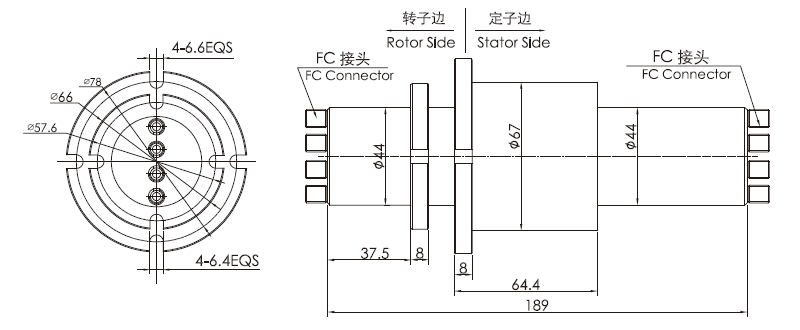

Drawing

Technical Specification of fo400b series slip ring

itemtype	Single mode（SM）	multi mode（MM）
Bandwidth(nm)	±50
Max insertion Loss，23℃(dB)	4	3.5
Insertion loss fluctuation(dB)	≤2	≤1
Return loss(dB)	≥50(APC)	≥40(PC)
max power(W)	0.5
Max speed(rpm)	400
Working life	>200 million
Work Temperature(℃)	-20~60
Storage temperature(℃)	-50~85
