FO209 Series 2 Channels Fiber-Electric Slip Ring

1310nm/1550nm

2 channels Fiber(support single mode/multi-mode) can be combined to transmit 1~24 circuits signal.Suitable for some applications which requires to keep 360° unrestricted,continuous or intermittent rotating and transmit mass data/signal from static side to

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE

Features: Can transmit single or multi channels fiber optic signal;; Fiber connector : FC、SC、ST、SMA or LC (PC /APC),etc optional;; Can be combined to transmit power, control signal, micropower signal of computer antomative control;; Can be combined with the traditional electric slip ring to transmit power and high-speed data;; Non contact, no friction, long working life, >100 million revolutions (20-30 millions revolutions for signal channel model);; Safe and reliable, no electromagnetic interference long-distance transmission.

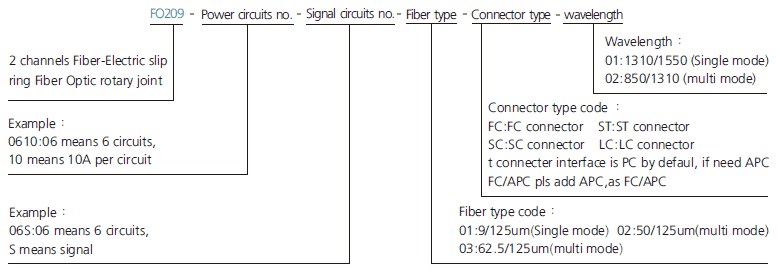

Part no. description

fo209 series FO209 Series 2 Channels Fiber-Electric Slip Ring slip ring description

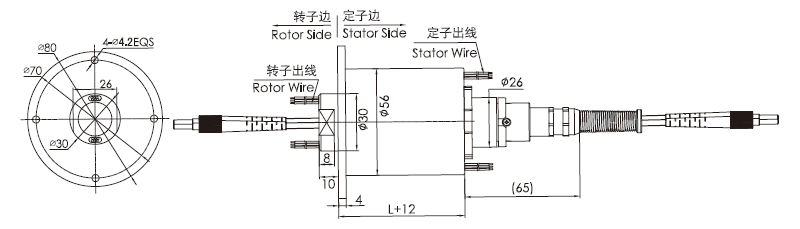

Drawing

Standard model list

FO209 2 channels Fiber-Electric slip ring model selection table;
Model	Fiber Channel no.	power circuits（10A）	signal/5A	Length L(mm)
FO209-02S	2	0	2	34
FO209-0210	2	2	0	34
FO209-03S	2	0	3	34
FO209-0310	2	3	0	34
FO209-06S	2	0	6	34
FO209-0210-04S	2	2	4	34
FO209-0410-02S	2	4	2	34
FO209-0610	2	6	0	34
FO209-12S	2	0	12	52
FO209-0210-10S	2	2	10	52
FO209-0310-09S	2	3	9	52
FO209-0610-06S	2	6	6	52
FO209-0810-04S	2	8	4	52
FO209-1010-02S	2	10	2	52
FO209-1210	2	12	0	52
FO209-18S	2	0	18	68.5
FO209-0210-16S	2	2	16	68.5
FO209-0610-12S	2	6	12	68.5
FO209-0810-10S	2	8	10	68.5
FO209-1010-08S	2	10	8	68.5
FO209-1210-06S	2	12	6	68.5
FO209-1610-02S	2	16	2	68.5
FO209-24S	2	0	24	88.5
FO209-0410-20S	2	4	20	85.5
FO209-0610-18S	2	6	18	85.5

Technical Specification of fo209 series slip ring

itemtype	Single mode（SM）	multi mode（MM）
Bandwidth(nm)	±50
Max insertion Loss，23℃(dB)	4	3.5
Insertion loss fluctuation(dB)	≤2	≤1
Return loss(dB)	≥50(PC)	≥40(PC)
max power(W)	0.5
Max speed(rpm)	400
Working life	>200 million
Work Temperature(℃)	-20~60
Storage temperature(℃)	-50~85

spec	data
	power	signal
voltage range	0~440VAC/VDC	0~440VAC/VDC
insulation resistance	≥1000mΩ/500VDC	≥1000mΩ/500VDC
lead wire spec.	AWG17# Silver-plated teflon	AWG22# Silver-plated teflon
lead wire length	standard 300mm（can be customized）
Dielectric Strength	500VAC@50Hz，60s
Electrical noise	<0.01Ω

Mechanical Data
spec	data
working life	8000 millions for ref(depends on working conditions)
Rotating speed	250RPM
Work Temperature	-20℃~60℃
work humidity	0~85% RH
contact material	precious metal
housing material	aluminum alloy
torque	0.1N.m;+0.03N.m/6 circuits
IP grade	IP51
