Slip Rings and Rotary Unions catalog | Selection Guide

Through hole slip ring selection guide 11.7MB DOWNLOAD
Capsule Slip Ring selection guide 3.09MB DOWNLOAD
Pneumatic Rotary Union & Rotary Joint selection guide 12MB DOWNLOAD
Industrial Bus Slip Rings selection guide 2.25MB DOWNLOAD
FO Series Fiber Optic Slip Ring selection guide 4.41MB DOWNLOAD
HF Series High Frequency Coaxial RF Rotary Joint selection guide 2.59MB DOWNLOAD
E Series (1000m) Gigabit Ethernet Slip Ring selection guide 2.13MB DOWNLOAD
U Series USB 2.0 Slip Ring selection guide 1.9MB DOWNLOAD
1080p Hd-sdi Slip Ring selection guide 549KB DOWNLOAD
Z Series Servo Motor Encoder Slip Ring selection guide 898KB DOWNLOAD
Pancake Slip Rings selection guide 1.85MB DOWNLOAD
P series PCB slip ring selection guide 3.68MB DOWNLOAD
2 Series High Current Slip Ring selection guide 2.85MB DOWNLOAD
F Series Dustproof & Waterproof Slip Rings selection guide 1.82MB DOWNLOAD
G Series High Speed Slip Ring selection guide 964KB DOWNLOAD
S Series Separate Slip Rings selection guide 839KB DOWNLOAD
High Temperature Slip Ring selection guide 188KB DOWNLOAD
A Series Mercury Slip Ring selection guide 210KB DOWNLOAD

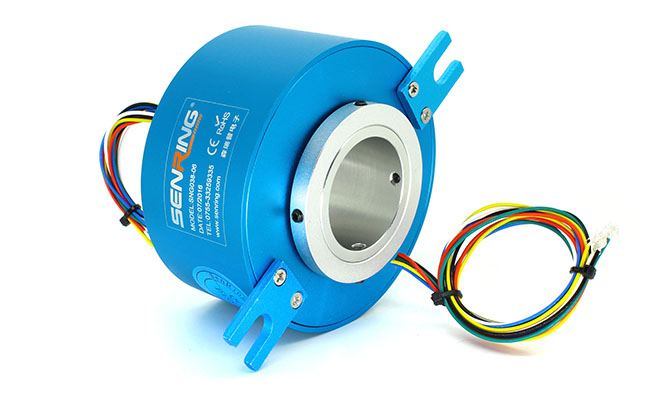

Through hole slip ring

HOLE SIZE:3mm~300mm option

CURRENT: 0~20A

VOLTAGE: 0~600VAC/VDC

Metal housing for better protection

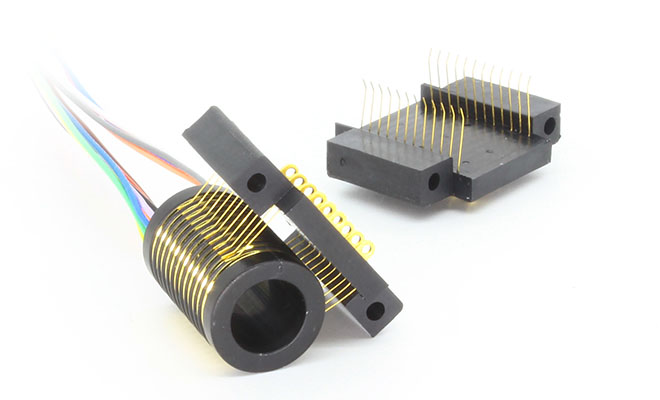

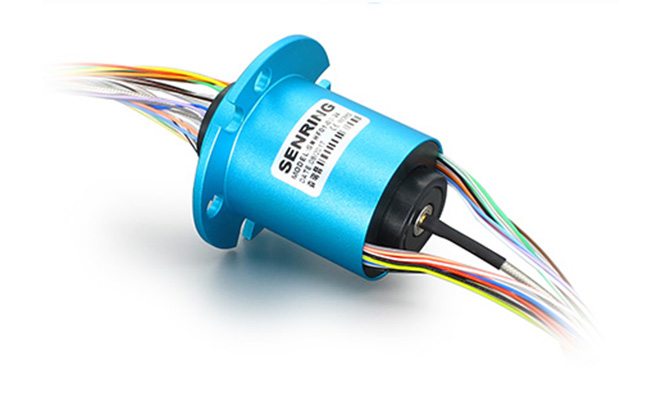

Capsule Slip Ring

OD: 6.5~30mm

Max current: 1~50A

Low torque, low insertion loss

Flange installation optional

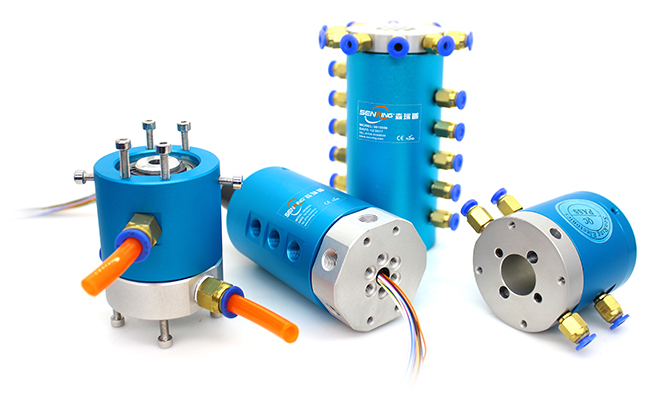

Pneumatic Rotary Union（+Electric）

Ports: G1/8,G3/8,M5,G1/2,Etc

Pipes: 4mm,6mm,8mm,10mm,Et

Support: Air,Steam,Vacuum,Etc

Can combine power and signals
Industrial Bus Slip Rings(Custom)

Transmit High Speed Data

Stably Transmit All Kinds Of Signals

upport RS-232,VGA,USB,HDMI,Etc

Signals Type Can Be Customized

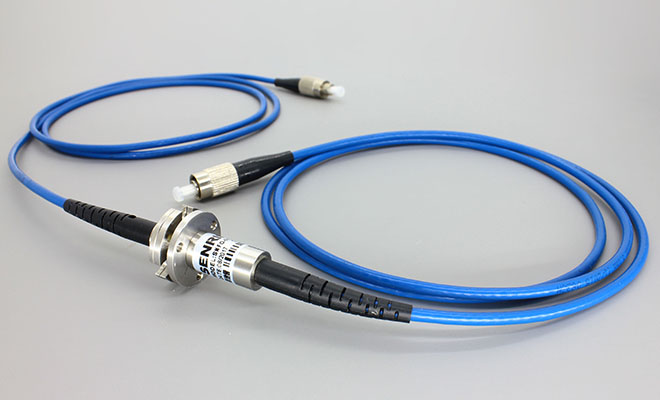

Fiber Optic Rotary Joint

FIBER CHANNEL: 1~8 channels

FIBER CONNECTOR: FC, SC, ST, etc

MAX POWER CIRCUITS: 0~96

MAX SIGNAL CIRCUITS: 0~96
High Frequency Rotary Joint

RF CHANNELS: 1~2

FREQUENCY RATE: DC~50GHz

ELECTRICAL CHANNELS: 0~96

Connector Type: RG405,SMA,MCX,etc
Gigabit Ethernet Slip Ring

ETHERNET CHANNELS NO.: 1~8

POWER CIRCUITS NO.:1~72

SIGNAL CIRCUITS NO.:1~72

ETHERNET TYPE: 100M / 1000M

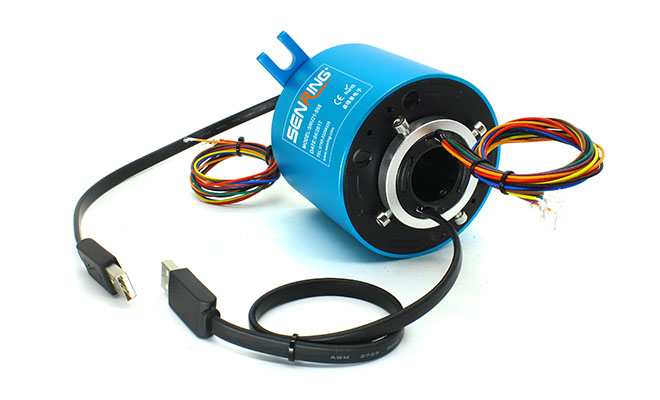

USB Slip Ring

USB CHANNELS NO.: 1~4

POWER CIRCUITS NO.: 1~72

SIGNAL CIRCUITS NO.: 1~72

MAXIMUM DATA SPEED: 40MB/S
1080p Hd-sdi Slip Ring

HD-SDI CHANNELS NO: 1

FREQUENCY RATE: DC-3GHz

SIGNAL CIRCUITS(0~2A): 0~48

POWER CIRCUITS(10A): 0~24

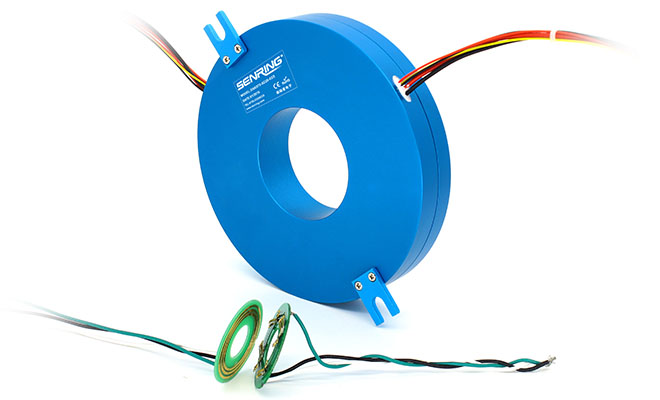

Pancake Slip Rings

HOLE SIZE:12.7~80mm option

Min. THICKNESS:15.8mm

RINGS:2~48mm

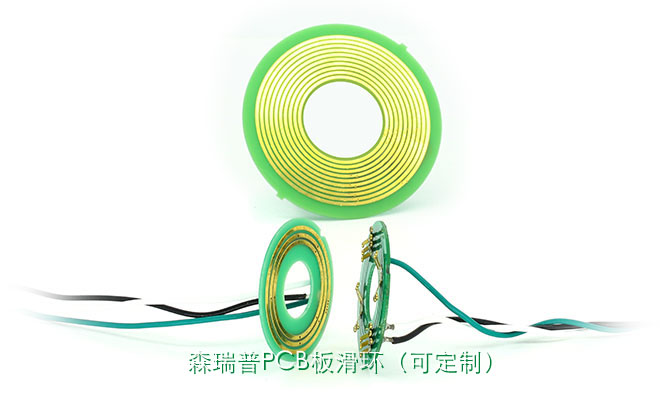

PCB Slip Rings

HOLE SIZE:12.7~50mm

Min. THICKNESS:6mm

RINGS:1~12 Channels

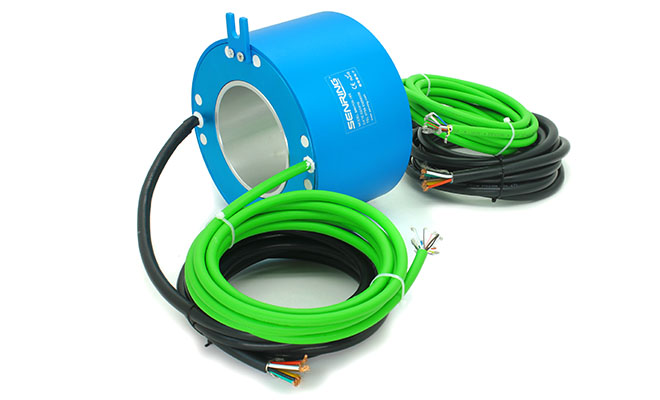

High Current Slip Rings

CURRENT: 50,100,250,1000~3000A

MAX CURRENT: 4000A

Larger Current Can Be Customized

CIRCUITS: 1~4
Dustproof & Waterproof Slip Ring

IP GRADE: IP65, IP68 optional

WIRES: 0~96 circuits

HOLE SIZE: solid to 50mm

OD: 28~119mm
High Speed Slip Rings

Max speed: 12000RPM

Max current: 0~10A

Circuits: 2~12 circuits

HOLE SIZE: solid to 38.1mm
Separate Slip Rings

HOLE SIZE: 9.55mm to 200mm

OD: 32mm to 306mm

Circuits: 6~48 circuits

Rotating speed: 250RPM
High Temperature Slip Ring

THERMOCOUPLE: PT100/K type

ACCURACY: <0.1℃;

Working Temperature: 100~250 ℃;

HOLE SIZE: 10 to 430mm

LEARN MORE
