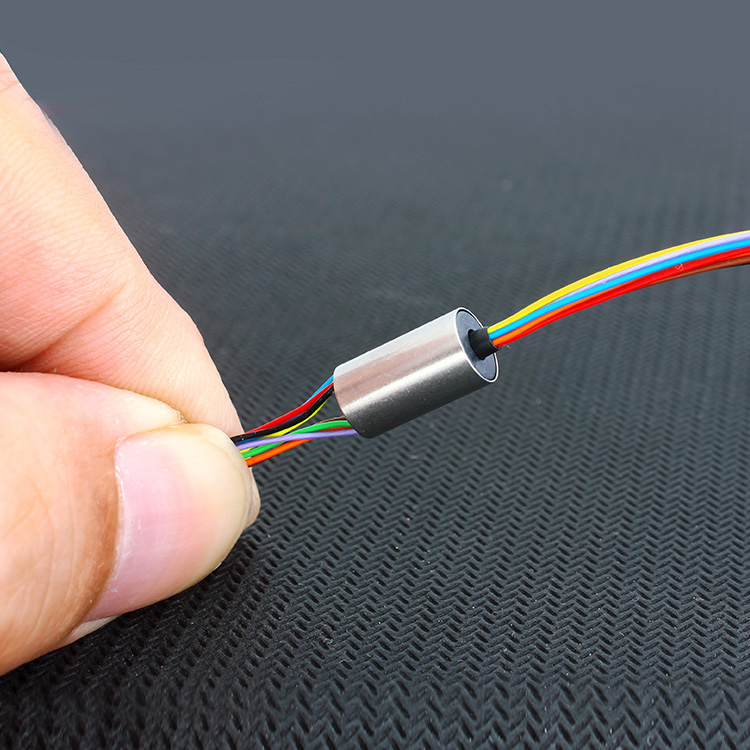

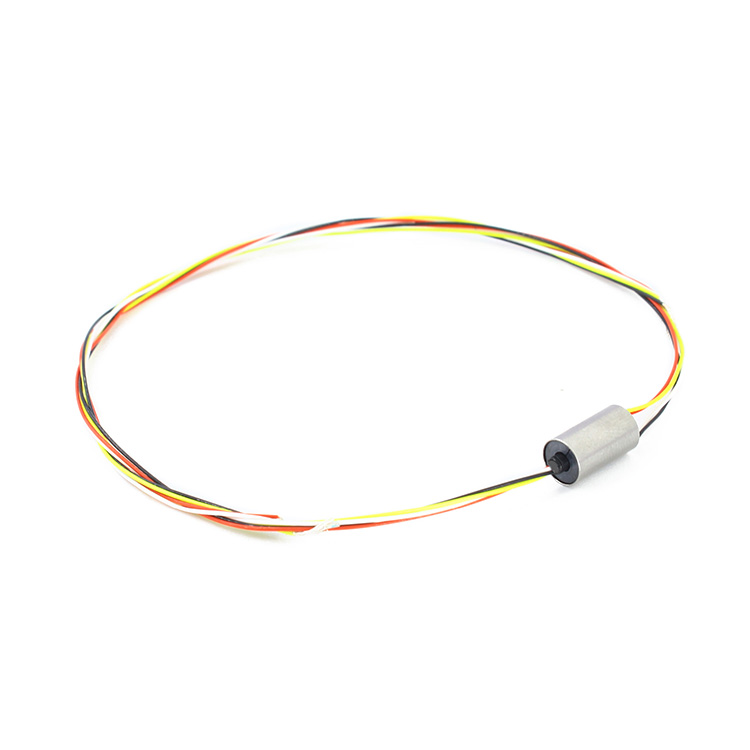

M065 Series OD6.5mm 4~12 Wire Miniture Slip Ring(Drone Slip Rings)

Senring M065 series is a newly developed miniture slip ring with the smallest OD 6.5mm (4~12 circuits optional), it is applied to handheld ptz,mini drone slip ring and so on. advanced military level, gold-gold contacts ensures low contact resistance, st

Senring M065 series drone slip rings is a newly developed miniture slip ring of Senring, the first model for 12wires with the smallest OD6.5mm, could be applied to medical equipments, precise instruments and mini drones...

Installation Resources 3D Model @Technical Inquiry Get a Quote

Features
OD6.5mm,mini dimension; Patented production, number：ZL 2016 2 0695427.2; Low torque,less than 0.06N.m 4~12 circuits workable; Standard product, stocks available; without flange,easy installation.

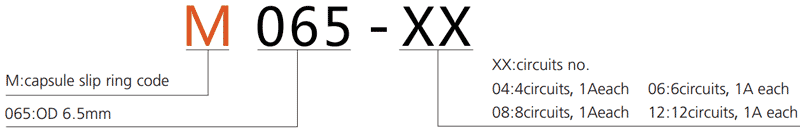

Part no. description

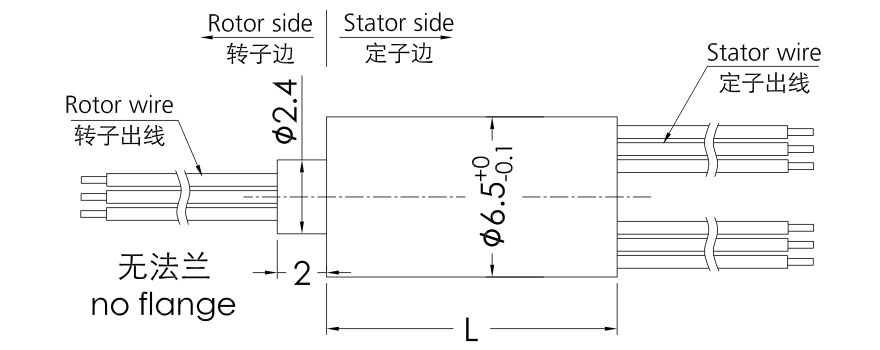

Drawing

Standard Model List

model	Circuits NO.	Max current/circuit	Length L(mm)
M065-04	4	1A	11.8
M065-06	6	1A	11.8
M065-08	8	1A	11.8
M065-12	12	1A	17.6

Technical Specification Of M065 Series Slip Ring

Mechanicall parameters
Working Life	10millions for ref(depends on working conditions)
Rotating speed	150RPM
Working Temp.	-30°C~80°C
Work Humidity	0~85% RH
Contact Material	precious metal:gold-gold
Housing Material	engineered plastic
Torque	0.05N.m+0.01N.m/6 wire
IP Grade	IP51

Electrical parameters
Spec.	Power	Signal
Voltage Range	0~240VAC/VDC	0~240VAC/VDC
Insolution Resistance	≥300MΩ/300VDC	≥300MΩ/300VDC
Lead wire Spec.	AWG30# Silver-plated teflon	AWG30# Silver-plated teflon
lead wire length	standard length 150mm (can be customized)
Dielectric Strength	300VAC @50Hz,60s
Electrical Noise	< 0.01Ω
